Rectus Abdominis Muscle: Functional Anatomy Guide


Rectus Abdominis Muscle: Functional Anatomy Guide

When most of us think of the abdominal muscles, we picture the “six-pack” muscles, the rectus abdominis. In fact, there are many more muscle groups to consider besides rectus abdominis muscle. The abdominal wall  is made up of a very complex mesh of muscles that belong to the group known as the core muscles:

  1. The rectus abdominis, commonly called the abs (the “six-pack” muscle)
  2. The external obliques, on both sides of the rectus abdominis
  3. The internal obliques, under the external obliques
  4. The transversus abdominis, under the obliques

In this post you will find out everything you need to know about the functional anatomy of the rectus abdominis muscle – location, shape (appearance), function (muscle action), insertion, origin, and palpation.

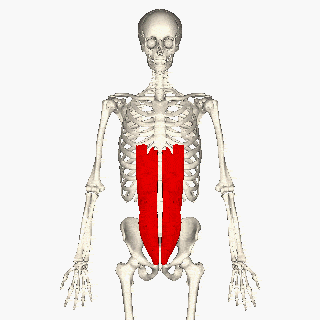

Location of the Rectus Abdominis Muscle

The rectus abdominis muscles are paired long strap muscles that extend vertically along the whole length of the anterior abdominal wall. They are broader above and lie close to the midline, separated from each other by the linea alba. It’s named after the straight, vertical direction of its fibers relative to the midline of the body.

Shape (Appearance)

The rectus abdominis muscle is strap-like in appearance.

When this muscle is in a good shape and layers of fat disappear from the abdomen, the exposed rectus abdominis muscle creates the look of a “six pack.”

rectus abdominis muscle

The two rectus abdominis muscles
(one on each side) are encased in a sheath of fascia that forms the central demarcation down the middle of the abs, known as the linea alba. Fascia divisions in the muscles are responsible for the “six-pack” appearance.

“Six Pack” or “Eight Pack”?

Interestingly, there are eight parts of this abdominal muscle (known as the rectus abdominis), but since most people never get that lean and a six pack is well known, the term eight pack never made it except to describe a pack of batteries or hot dog buns.

Origin and Insertion

The rectus abdominis muscle arises from two heads, from the front of the symphysis pubis and from the pubis crest. It inserts into the fifth, sixth, and seventh costal cartilages and the xiphoid process.

anatomy of the rectus abdominis muscle

Tendinous Inscriptions

The rectus abdominis muscle is literally, divided into sections by a vertical tendinous inscription called the linea alba, and by horizontal tendinous inscriptions. These inscriptions are very apparent in the abdominal area of a person who is sufficiently lean, and often appear to divide the musculature into a resemblance that is commonly referred to as “6-packs,” „speed bumps” or “wash-board abs.” The process of attaining this look is commonly called getting “cut,” “sliced” or “ripped.”

It should be noted that the depth and width of the tendinous inscriptions are genetically determined. No amount of “specialized” ab training or performing endless repetitions can deepen or increase their width. This predetermined genetic factor — width and depth of the tendinous descriptions — explains why some people who are very lean do not exhibit marked “separation” between the abdominal sections, and never will. How do you get washboard abs? Lose subcutaneous body fat by expending more calories than you take in, hope the fat is used from the abdominal area, and choose your parents well.

Function of the Rectus Abdominis Muscle

The rectus abdominis not only looks good and attractive, but it also serves a real purpose.

The primary action of the rectus abdominis is spinal flexion (flexion of the trunk) – bending the torso forward toward the legs. The rectus abdominis is considered the most powerful flexor of the spine.

The motion is carried out by the upper abs, which pull the rib cage down toward the pelvis, or by the lower abs, which lift the pelvis up toward the chest.


Lying on your back with your knees bent and feet flat on the floor, curl up so that your head and shoulders rise off the floor. The rectus abdominis can be palpated  just to the sides of the midline of the abdomen running from the bottom of the sternum to the pubic bone. Also, run your fingertips along the midline of the abdomen.

Rectus Abdominis Strengthening Exercises

The abdominal muscles are the main muscles involved in flexing the torso, but no amount of training will significantly reduce fat in this area, as is sometimes claimed.

Well-defined abdominals are the product of hard training, careful eating and low body-fat levels. If you are after a rippling six-pack, you need to reduce your abdominal fat layer for the muscles to show through. Increasing their size alone through exercise will not be enough. For these muscles to become visible, men need to have 10–12 per cent body fat and women need to have 15–18 per cent body fat.

List of the most important upper abdominal exercises:

  • Basic abdominal crunch;
  • Decline bench sit-ups;
  • Machine crunch;
  • Kneeling cable crunch;
  • Classic floor sit-ups;
  • Modified V-sit;
  • Exercise ball crunch;
  • Vertical leg crunch;

Rectus Abdominis Strengthening Exercises

List of the most important lower abdominal exercises:

  • Vertical leg raise;
  • Reverse crunch;
  • Hanging leg raise;
  • Hip raise;
  • Lying leg raise;
  • V-leg raise;
  • Incline reverse crunch;
  • Swiss-ball reverse crunch;

Upper and Lower Rectus Abdominis?

Abdominal training generally falls into two categories: upper and lower. In a way this is misleading. From an anatomical point of view there are no upper and lower abs. This misconception arises because the abdominal ridges are arranged left to right, not up and down. But the abdominal fibers run from ribcage to pelvis. Still, from an exercise point of view it is possible to target the upper and lower regions with different exercises.

Generally speaking, to hit the upper abdominals you perform movements where the legs are stationary and your sternum moves toward the legs (e.g. crunches). Conversely, to bring in more of the lower abdominals you keep the upper body stationary and move the legs toward the sternum (e.g. reverse crunches, leg raises).

The upper, middle and lower sections of the rectus abdominis do not turn on and off like a light switch. Envision their activation more like the effect a dimmer switch would have on a light bulb. Depending on the movement, body position and load, different regions of the rectus abdominis will shine (activate) more or less brightly. Low level illumination (muscle activation) is always present in the entire muscle (the light bulb).

Closing thoughts

The rectus abdominis is your potential six-pack and the muscle most people are thinking of when they talk about abs. However, your abs are made up of three sets of muscles. As well as the rectus abdominis there are the obliques in your side (external obliqus and internal obliques), which come into play when twisting and bending, and the transversus abdominis, which goes all the way across your stomach, behind the rectus abdominis. Therefore, for maximum toning you need to work all three muscles individually and together rather than just focusing on the easily worked and dominant rectus abdominis. Finally, the good news is that there are plenty of exercises you can do without even needing to go to the gym. Some bodybuilders show eight distinct blocks of abdominal muscles (four complete rows) while others are lucky to get four blocks to peak out (two rows).

anatomy of the abdominal wall
